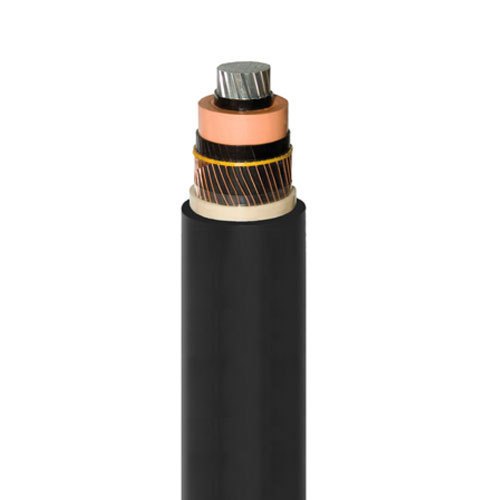

LT XLPE Power Cable

LT XLPE Power Cables: Empowering Low Voltage Solutions with Excellence

Our LT XLPE Power Cables are the epitome of reliability and efficiency for low voltage electrical systems. These cables are meticulously crafted with advanced cross-linked polyethylene insulation, offering superior electrical performance and durability. Designed for low-tension applications, our LT XLPE Power Cables ensure minimal energy loss and reduced maintenance, making them ideal for residential, commercial, and industrial use. Count on these cables to deliver a steady and efficient flow of electricity, meeting the diverse needs of low voltage power distribution with excellence.

LT XLPE Power Cables
- Single Core
  (Armoured / Un-armoured)
- Multi Core
  (Armoured / Un-armoured)

Applicable Standards
Technical Info

IS 7098 - 1

IEC 60502 - 1

BS 6724

BS 6004

BS 6346

TABLE 1 SINGLE CORE XLPE INSULATED CABLES ACCORDING TO IS 7098-1
Conductor cross sectional Area	Insulation Thickness		Diameter of Round wire armour	Outersheath Thickness
	Armoured	Unarmoured	Diameter of Round wire armour	Flat strip armoured cable	Round wire armoured cable	Unarmoured cable
	Nominal	Nominal	Nominal	Minimum	Minimum	Nominal
sqmm	mm	mm	mm	mm	mm	mm
10	1.00	0.70	1.4	-	1.24	1.80
16	1.00	0.70	1.4	-	1.24	1.80
25	1.20	0.90	1.4	-	1.24	1.80
35	1.20	0.90	1.4	-	1.24	1.80
50	1.30	1.00	1.4	-	1.24	1.80
70	1.40	1.10	1.4	-	1.24	1.80
95	1.40	1.10	1.60	1.40	1.40	1.80
120	1.50	1.20	1.60	1.40	1.40	1.80
150	1.70	1.40	1.60	1.40	1.40	2.00
185	1.90	1.60	1.60	1.40	1.40	2.00
240	2.00	1.70	1.60	1.40	1.40	2.00
300	2.10	1.80	1.60	1.56	1.56	2.00
400	2.40	2.00	2.00	1.56	1.56	2.20
500	2.60	2.20	2.00	1.56	1.56	2.20
630	2.80	2.40	2.00	1.72	1.72	2.20
800	3.10	2.60	2.00	1.72	1.88	2.40
1000	3.30	2.80	2.50	1.88	2.04	2.60

TABLE 2 TWO CORE XLPE INSULATED CABLES ACCORDING TO IS 7098-1
Conductor cross sectional Area	Insulation Thickness	Innersheath Thickness	Diameter of Round wire armour	Outersheath Thickness
	Insulation Thickness	Innersheath Thickness	Diameter of Round wire armour	Flat strip armoured cable	Round wire armoured cable	Unarmoured cable
	Nominal	Minimum	Nominal	Minimum	Minimum	Nominal
sqmm	mm	mm	mm	mm	mm	mm
1.50	0.70	0.30	1.4	-	1.24	1.80
2.50	0.70	0.30	1.4	-	1.24	1.80
4	0.70	0.30	1.4	-	1.24	1.80
6	0.70	0.30	1.4	-	1.24	1.80
10	0.70	0.30	1.4	-	1.24	1.80
16	0.70	0.30	1.4	-	1.40	1.80
25	0.90	0.30	1.60	1.40	1.40	2.00
35	0.90	0.30	1.60	1.40	1.40	2.00
50	1.00	0.30	1.60	1.40	1.40	2.00
70	1.10	0.30	1.60	1.56	1.56	2.00
95	1.10	0.40	2.00	1.56	1.56	2.20
120	1.20	0.40	2.00	1.56	1.56	2.20
150	1.40	0.40	2.00	1.72	1.72	2.20
185	1.60	0.50	2.00	1.72	1.88	2.40
240	1.70	0.50	2.50	1.88	2.04	2.60
300	1.80	0.60	2.50	2.04	2.20	2.80
400	2.00	0.60	2.50	2.36	2.36	3.00
500	2.20	0.70	3.15	2.52	2.68	3.40
630	2.40	0.70	3.15	2.68	2.84	3.60

TABLE 3 THREE CORE XLPE INSULATED CABLES ACCORDING TO IS 7098-1
Conductor cross sectional Area	Insulation Thickness	Innersheath Thickness	Diameter of Round wire armour	Outersheath Thickness
	Insulation Thickness	Innersheath Thickness	Diameter of Round wire armour	Flat strip armoured cable	Round wire armoured cable	Unarmoured cable
	Nominal	Minimum	Nominal	Minimum	Minimum	Nominal
sqmm	mm	mm	mm	mm	mm	mm
1.50	0.70	0.30	1.4	-	1.24	1.80
2.50	0.70	0.30	1.4	-	1.24	1.80
4	0.70	0.30	1.4	-	1.24	1.80
6	0.70	0.30	1.4	-	1.24	1.80
10	0.70	0.30	1.4	-	1.24	1.80
16	0.70	0.30	1.60	1.24	1.40	1.80
25	0.90	0.30	1.60	1.40	1.40	2.00
35	0.90	0.30	1.60	1.40	1.40	2.00
50	1.00	0.30	1.60	1.40	1.56	2.00
70	1.10	0.40	2.00	1.56	1.56	2.20
95	1.10	0.40	2.00	1.56	1.56	2.20
120	1.20	0.40	2.00	1.56	1.72	2.20
150	1.40	0.50	2.00	1.72	1.88	2.40
185	1.60	0.50	2.50	1.88	2.04	2.60
240	1.70	0.60	2.50	2.04	2.20	2.80
300	1.80	0.60	2.50	2.20	2.36	3.00
400	2.00	0.70	3.15	2.52	2.68	3.20
500	2.20	0.70	3.15	2.68	2.84	3.60
630	2.40	0.70	4.00	2.84	3.00	3.80

TABLE 4 THREE CORE WITH REDUCED NEUTRAL CORE XLPE INSULATED CABLES ACCORDING TO IS 7098-1
Conductor cross sectional Area	Insulation Thickness	Innersheath Thickness	Diameter of Round wire armour	Outersheath Thickness
	Insulation Thickness	Innersheath Thickness	Diameter of Round wire armour	Flat strip armoured cable	Round wire armoured cable	Unarmoured cable
	Nominal	Minimum	Nominal	Minimum	Minimum	Nominal
sqmm	mm	mm	mm	mm	mm	mm
25	0.90	0.30	1.60	1.40	1.40	2.00
35	0.90	0.30	1.60	1.40	1.40	2.00
50	1.00	0.30	1.60	1.40	1.56	2.00
70	1.10	0.40	2.00	1.56	1.56	2.20
95	1.10	0.40	2.00	1.56	1.56	2.20
120	1.20	0.40	2.00	1.72	1.72	2.20
150	1.40	0.50	2.00	1.72	1.88	2.40
185	1.60	0.50	2.50	1.88	2.04	2.60
240	1.70	0.60	2.50	2.04	2.20	2.80
300	1.80	0.60	2.50	2.20	2.36	3.00
400	2.00	0.70	3.15	2.52	2.68	3.40
500	2.20	0.70	3.15	2.68	2.84	3.60
630	2.40	0.70	4.00	3.00	3.00	4.00

TABLE 5 FOUR CORE XLPE INSULATED CABLES ACCORDING TO IS 7098-1
Conductor cross sectional Area	Insulation Thickness	Innersheath Thickness	Diameter of Round wire armour	Outersheath Thickness
	Insulation Thickness	Innersheath Thickness	Diameter of Round wire armour	Flat strip armoured cable	Round wire armoured cable	Unarmoured cable
	Nominal	Minimum	Nominal	Minimum	Minimum	Nominal
sqmm	mm	mm	mm	mm	mm	mm
1.50	0.70	0.30	1.4	-	1.24	1.80
2.50	0.70	0.30	1.4	-	1.24	1.80
4	0.70	0.30	1.4	-	1.24	1.80
6	0.70	0.30	1.4	-	1.24	1.80
10	0.70	0.30	1.4	-	1.40	1.80
16	0.70	0.30	1.60	1.40	1.40	1.80
25	0.90	0.30	1.60	1.40	1.40	2.00
35	0.90	0.30	1.60	1.40	1.40	2.00
50	1.00	0.30	1.60	1.56	1.56	2.00
70	1.10	0.40	2.00	1.56	1.56	2.20
95	1.10	0.40	2.00	1.56	1.72	2.20
120	1.20	0.50	2.00	1.72	1.88	2.40
150	1.40	0.50	2.50	1.88	2.04	2.60
185	1.60	0.50	2.50	2.04	2.20	2.80
240	1.70	0.60	2.50	2.20	2.36	3.00
300	1.80	0.70	3.15	2.36	2.52	3.20
400	2.00	0.70	3.15	2.68	2.84	3.60
500	2.20	0.70	4.00	2.84	3.00	3.80
630	2.40	0.70	4.00	3.00	3.00	4.00

Note:-
1. Changes that improve our product will be done without notice.
2. If there is any discrepancy found above, the applicable standard will prevail.
