AL 59 Conductor

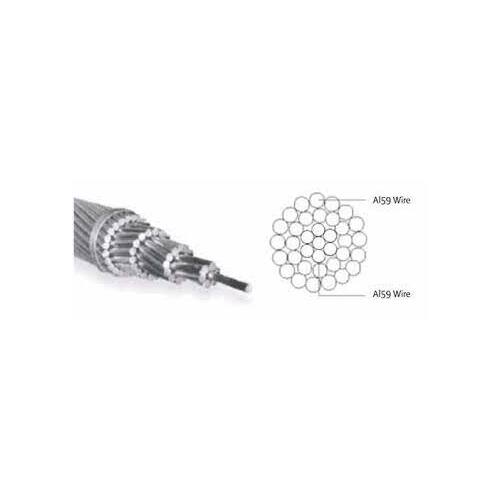

AL 59 Conductor (All Aluminium AL 59 - Alloy Conductor)

AL 59 Alloy Conductor: Pioneering Excellence in Conductivity.

Experience the future of electrical conductivity with our AL 59 Alloy Conductor. Crafted from an innovative aluminium alloy blend, this conductor offers a cutting-edge solution for power transmission and distribution. AL 59 Alloy Conductor combines the lightweight properties of aluminium with superior conductivity, making it an ideal choice for modern electrical grids. Its advanced composition ensures enhanced efficiency, reduced energy losses, and exceptional durability, even in challenging environmental conditions.

Applicable Standards
Technical Info

IS 398-6

SS EN 424 0813

SS EN 424 0814

AL 59 ALLOY CONDUCTOR - AS PER IS 398 (PART - VI)
NOMINAL ALUMINIUM AREA	STRANDING		Overall Dia (mm) (Approx)	CONDUCTOR WEIGHT kg/km	RESISTANCE AT 20 DEG C	ULTIMATE BREAKING LOAD (KN)
NOMINAL ALUMINIUM AREA	NO. OF WIRES	WIRE DIAMETER (mm)	Overall Dia (mm) (Approx)	CONDUCTOR WEIGHT kg/km	OHMS/KM	ULTIMATE BREAKING LOAD (KN)
15	3	2.50	5.39	40.15	1.9920	3.50
22	7	2.00	6.00	60.15	1.3379	5.20
34	7	2.50	7.50	93.98	0.8563	8.20
80	7	3.81	11.43	218.28	0.3687	18.20
100	7	4.26	12.78	272.88	0.2949	21.80
125	19	2.89	14.45	342.55	0.2372	29.60
173	19	3.40	17.00	474.09	0.1714	41.00
200	19	3.66	18.30	549.39	0.1479	45.60
276	37	3.08	21.56	759.20	0.1075	65.47
454	61	3.08	27.72	1254.34	0.0653	108.00
484	61	3.18	28.62	1337.00	0.0613	115.10
525	61	3.31	29.79	1448.61	0.0566	124.70
554	61	3.40	30.60	1528.44	0.0536	131.53
594	61	3.52	31.70	1638.23	0.0501	135.40
642	61	3.66	32.94	1771.16	0.0463	146.40
695	61	3.81	34.29	1919.30	0.0427	158.60
774	61	4.02	36.18	2136.69	0.0384	169.17

AL 59 ALLOY CONDUCTOR - AS PER SS 4240814
NOMINAL ALUMINIUM AREA	STRANDING		Overall Dia (mm) (Approx)	CONDUCTOR WEIGHT kg/km	RESISTANCE AT 20 DEG C	BREAKING LOAD (KN)
NOMINAL ALUMINIUM AREA	NO. OF WIRES	WIRE DIAMETER (mm)	Overall Dia (mm) (Approx)	CONDUCTOR WEIGHT kg/km	OHMS/KM	BREAKING LOAD (KN)
31	7	2.38	7.1	85	0.943	7.77
62	7	3.37	10.1	170	0.470	15.6
99	7	4.25	12.8	271	0.296	22.8
157	19	3.26	16.3	436	0.186	39.7
241	19	4.02	20.1	663	0.123	55.5
329	37	3.37	23.6	910	0.0899	82.5
454	61	3.08	27.7	1260	0.0654	113.0
593	61	3.52	31.7	1640	0.0501	143.0
774	61	4.02	36.2	2140	0.0384	178.0
910	61	4.36	39.2	2520	0.0326	209.0
