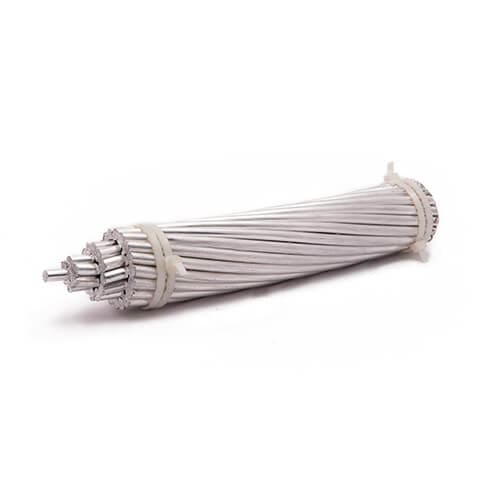

AA Conductor (AAC)

All Aluminium Conductor

Discover the efficiency and reliability of our AAC conductors, designed to meet the demands of modern power transmission systems. These conductors are made entirely from high-purity aluminium strands, offering excellent electrical conductivity and corrosion resistance. AAC conductors are known for their lightweight design, making them a cost-effective choice for overhead electrical distribution lines. With AAC conductors from our company, you can count on seamless energy transmission, reduced maintenance costs, and a sustainable solution that powers communities and industries efficiently.

High Conductivity

Very high degree of corrosion Resistance

Excellent conductor of heat & Electricity

All Aluminium bare conductors are used for aerial distribution lines having relatively short spans, aerial feeders and bus bars of substations.

IS 398-1

BS EN 50182

BS 215-1

IEC 61089

AS 1531

ASTM B231

AAC CONDUCTOR (ALL ALUMINIUM CONDUCTOR) AS PER IS 398 (PART - I)
NOMINAL ALUMINIUM AREA	TOTAL SECTIONAL AREA (SQ. MM)	STRANDING		Overall Dia (mm) (Approx)	CONDUCTOR WEIGHT kg/km	RESISTANCE AT 20 DEG C	ULTIMATE BREAKING LOAD (KN)
NOMINAL ALUMINIUM AREA	TOTAL SECTIONAL AREA (SQ. MM)	NO. OF WIRES	WIRE DIAMETER (mm)	Overall Dia (mm) (Approx)	CONDUCTOR WEIGHT kg/km	OHMS/KM	ULTIMATE BREAKING LOAD (KN)
25	26.85	7	2.21	6.63	74	1.0960	4.52
50	52.83	7	3.10	9.30	145	0.5525	8.25
100	106.00	7	4.39	13.17	290	0.2752	15.96
150	150.90	19	3.18	15.90	415	0.1942	23.28
240	237.60	19	3.99	19.95	654	0.1235	35.74
300	322.70	19	4.65	23.25	888	0.0911	48.74

AAC CONDUCTOR (ALL ALUMINIUM CONDUCTOR) AS PER BS 215 (PART - I)
NOMINAL ALUMINIUM AREA	TOTAL SECTIONAL AREA (SQ. MM)	STRANDING		Overall Dia (mm) (Approx)	CONDUCTOR WEIGHT kg/km	RESISTANCE AT 20 DEG C	ULTIMATE BREAKING LOAD (KN)
NOMINAL ALUMINIUM AREA	TOTAL SECTIONAL AREA (SQ. MM)	NO. OF WIRES	WIRE DIAMETER (mm)	Overall Dia (mm) (Approx)	CONDUCTOR WEIGHT kg/km	OHMS/KM	ULTIMATE BREAKING LOAD (KN)
22	23.33	7	2.06	6.18	64	1.2270	3.99
50	52.83	7	3.10	9.30	145	0.5419	8.28
60	63.55	7	3.40	10.20	174	0.4505	9.90
100	106.00	7	4.39	13.17	290	0.2702	16.00
150	157.60	19	3.25	16.25	434	0.1825	25.70
200	213.20	19	3.78	18.90	587	0.1349	32.40
250	265.70	19	4.22	21.10	731	0.1083	40.40
300	322.70	19	4.65	23.25	888	0.0892	48.75
400	415.20	37	3.78	26.46	1145	0.0694	63.10
