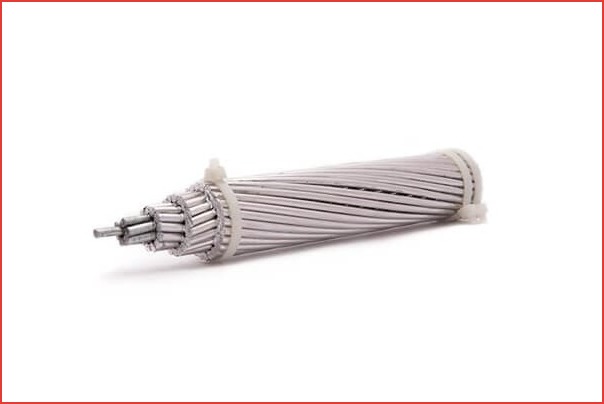

AAA Conductor

All Aluminium Alloy Conductors

Introducing our AAAC conductors, the epitome of lightweight strength in electrical transmission. Crafted from high-strength aluminium alloy strands, our AAAC conductors offer exceptional conductivity while remaining significantly lighter than traditional conductors. This combination of strength and weight savings makes AAAC conductors an ideal choice for overhead power lines, allowing for easier installation and reduced stress on support structures. When it comes to delivering uninterrupted power with efficiency and reliability, our AAAC conductors are the smart choice for today's electrical infrastructure.

The use of AAAC is increasing fast for transmission and distribution purposes and is now gradually replacing AAC/ACSR due to its various advantages over traditional AAC / ACSR Conductors. The main features of AAAC are reduced line losses, increased span. Longer life, homogeneous character and its anticorrosion properties. AAA Conductors is a new concept for energy conservation.

AAAC exhibits excellent corrosion resistance especially in sea coast areas and in polluted industrial areas due to absence of steel core.

Since MAC is homogeneous (with strands of Aluminium Alloy) with no steel component the resistance of AAAC is lower as compared to ACSR.

AAAC can carry at least 15-20% extra current as compared to ACSR of equal size.

Experience in foreign countries shows that All Aluminium Alloy Conductors are in service for over 60 years, which is about double the life of ACSR Conductors.

The surface hardness of AAAC is 80 BHN as compared to 35 BHN of ACSR.

This reduces the damage to surface during handling and therefore leading to lesser corona losses and ratio interference at EHV.

AAAC are stable up to 90 C against ACSR conductors which are stable up to 75 C.

Since AAAC has higher strength to weight ratio, span can be increased from 2 to 15% as in case of ACSR resulting in overall reduction of cost in towers supports and other accessories in transmission line system.

A.A.A.C. are mainly used for overhead lines, in transmission and distribution electrical networks, having relatively long spans. They are also used a messenger to support overhead electrical cables.

IS 398-4

BS EN 50182

IEC 61089

ASTM B399

AS 1531

AAAC CONDUCTOR (ALL ALUMINIUM ALLOY CONDUCTOR) AS PER IS 398 (PART - IV)
NOMINAL ALUMINIUM AREA	STRANDING		Overall Dia (mm) (Approx)	CONDUCTOR WEIGHT kg/km	RESISTANCE AT 20 DEG C	ULTIMATE BREAKING LOAD (KN)
NOMINAL ALUMINIUM AREA	NO. OF WIRES	WIRE DIAMETER (mm)	Overall Dia (mm) (Approx)	CONDUCTOR WEIGHT kg/km	OHMS/KM	ULTIMATE BREAKING LOAD (KN)
15	3	2.50	5.39	40.15	2.3040	4.33
22	7	2.00	6.00	60.16	1.5410	6.45
34	7	2.50	7.50	94.00	0.9900	10.11
55	7	3.15	9.45	149.20	0.6210	16.03
80	7	3.81	11.43	218.26	0.4250	23.41
100	7	4.26	12.78	272.86	0.3390	29.26
125	19	2.89	14.45	342.51	0.2735	36.64
148	19	3.15	15.75	406.91	0.2290	43.50
173	19	3.40	17.00	474.02	0.1969	50.54
200	19	3.66	18.30	549.40	0.1710	58.66
232	19	3.94	19.70	636.67	0.1471	68.05
288	37	3.15	22.05	794.05	0.1182	84.71
346	37	3.45	24.15	952.56	0.0984	101.58
400	37	3.71	25.97	1101.63	0.0829	117.40
465	37	4.00	28.00	1280.50	0.0734	136.38
525	61	3.31	29.79	1448.39	0.0651	146.03
570	61	3.45	31.05	1573.71	0.0598	158.66
604	61	3.55	31.95	1666.00	0.0568	167.99
642	61	3.66	32.94	1771.36	0.0534	178.43
695	61	3.81	34.29	1919.13	0.0492	193.25
767	61	4.00	36.00	2115.54	0.0446	213.01

AAAC CONDUCTOR (ALL ALUMINIUM ALLOY CONDUCTOR) AS PER IEC 61089
NOMINAL ALUMINIUM AREA	TOTAL SECTIONAL AREA (SQ. MM)	STRANDING		Overall Dia (mm) (Approx)	CONDUCTOR WEIGHT kg/km	RESISTANCE AT 20 DEG C	ULTIMATE BREAKING LOAD (KN)
NOMINAL ALUMINIUM AREA	TOTAL SECTIONAL AREA (SQ. MM)	NO. OF WIRES	WIRE DIAMETER (mm)	Overall Dia (mm) (Approx)	CONDUCTOR WEIGHT kg/km	OHMS/KM	ULTIMATE BREAKING LOAD (KN)
16	18.6	7	1.84	5.52	50.80	1.7896	6.04
25	29.0	7	2.30	6.90	79.50	1.1453	9.44
40	46.5	7	2.91	8.73	127.10	0.7158	15.10
63	73.2	7	3.65	10.95	200.20	0.4545	23.06
100	116	19	2.79	13.95	319.30	0.2877	37.76
125	145	19	3.12	15.60	399.20	0.2302	47.20
160	186	19	3.53	17.65	511.00	0.1798	58.56
200	232	19	3.95	19.75	638.70	0.1439	73.20
250	290	19	4.41	22.05	798.40	0.1151	91.50
315	366	37	3.55	24.85	1008.40	0.0916	115.29
400	465	37	4.00	28.00	1280.50	0.0721	146.40
450	523	37	4.24	29.68	1440.50	0.0641	164.70
500	581	37	4.47	31.29	1600.60	0.0577	183.00
560	651	61	3.69	33.21	1795.30	0.0516	204.96
630	732	61	3.91	35.19	2019.80	0.0458	230.58
710	825	61	4.15	37.35	2276.20	0.0407	259.86
800	930	61	4.40	39.60	2564.80	0.0361	292.80
900	1046	91	3.83	42.13	2888.30	0.0321	329.40
1000	1162	91	4.03	44.33	3209.30	0.0289	366.00
1120	1301	91	4.27	46.97	3594.40	0.0258	409.92
